专业pcb设计-25Gbps光通信核心板

Release time:2019-03-29 Editor author:Jin Zhi Zhu Read:26700

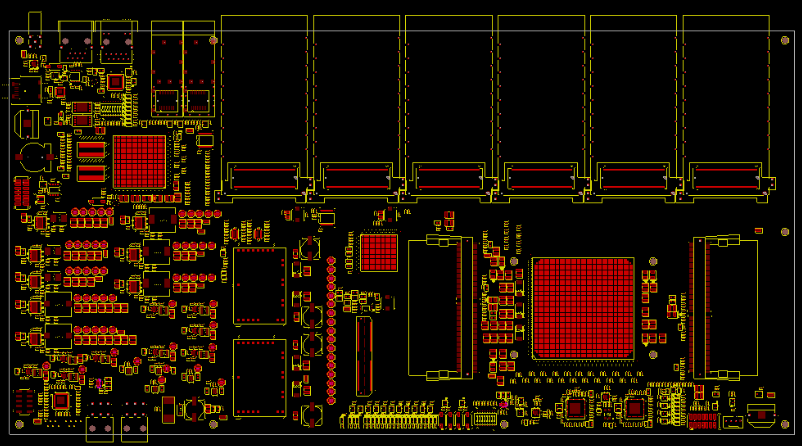

专业pcb设计25Gbps光通信核心板:

接口类型;光模块口、千兆以太网、DDR3、SMA等。

电源类型;模块电源2,BUCK电源22,最大单线负载100A。

设计难度;16层板,核心BGA 2577PINS,4个信号内层,10个电源平面,信号速率25Gbps\10Gbps,0.95V核心电源设计电流100A。整板设计密度很高,电源种类多,SI/PI仿真,PINS数11007。

客户反馈;专业pcb设计PCB打样一板完成,客户顺利进入工程调试阶段。
