深圳PCB设计公司-工控板设计

Release time:2019-03-29 Editor author:Jin Zhi Zhu Read:1370

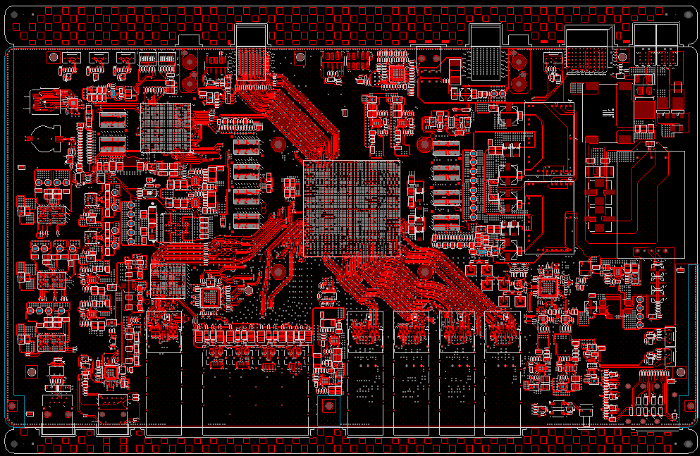

深圳PCB设计公司设计的XCVU190-2FLGA2577E:

接口类型;光模块口、千兆以太网、DDR3、SMA等。

电源类型;模块电源3,BUCK电源27,最大单线负载100A。

设计难度;16层板,单个BGA 2577PINS,4个信号内层,10个电源平面,信号速率25Gbps\10Gbps,0.95V核心电源设计电流100A。整板设计密度很高,电源种类多,SI/PI仿真,PINS数12057。

深圳PCB设计公司客户反馈;PCB打样一板完成,客户顺利进入工程调试阶段。
